CS Project has a very useful feature that lets users customise the colour of the bars on the bar chart, as well as Milestone bars. Of course, you have colours according to the status of the bar, such as a normal bar, critical bar and super-critical bar and you can change these, but you can also use Activity Codes to change an individual bar / Milestone colour regardless of its status.
Activity codes - are essentially lookup tables. For each code you define a number of possible
values. The code fields allow you to select a value from the predefined list of possible values.
Code fields can also be used for display purposes on the bar chart.
To independently colour Milestones, the following steps need to be taken:
Step One – Define a code library under the Configuration toolbar.
1.) Select the configuration toolbar and press the Activity Codes button.
2.) Ensure the <New> option in the left-hand list is selected.
3.) Enter the name for the new code in the Name field (We’re going to name it Milestone).
4.) In the grid, enter a short code and then a description for each code you wish to create.
5.) Click in the Format column and press the three dots to display the Format dialog.
6.) For Milestones, only format / use the Start Point section. It would also be a good idea to select the ‘Pattern’ drop down menu in the Bar section and select the pattern second from the top, only showing the outline of a rectangle. This will remove the bar section and only show the start point symbol.
Step Two – Assign the codes to each Milestone, either in the Activity Details dialog (Codes tab) or in the activity table.
1.) Double click on the activity / milestone of which you wish to set a code.
2.) Select the codes tab.

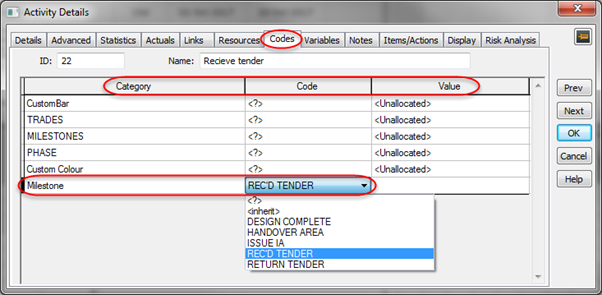

3.) The ‘Category’ column is the different activity codes that are available. Find the name of the one you created and follow it to the right. The ‘Code’ column in this tab will list all of the codes you have previously made, whereas the ‘Value’ column will display the description for the codes you have just made. Use either one to assign the code and press ‘OK’.
Step Three – Select or create a Bar Chart Layout to display a bar chart using the code library.
1.) Ensure that the Bar Chart is selected, and go to the Configuration toolbar > Bar Chart options. (Alternatively, right-click on the bar chart and select Bar Chart Options).
2.) Make sure you are in the advanced view. (Select Advanced at the bottom. If it displays ‘Basic’, you are in the right view).
3.) Select the Bars tab.
4.) To create a new Bar Chart Layout, click on New and give the new layout a name. (Something along the lines of Colour By Code). We recommend making a new layout to keep the defaults integrity intact for use at a later date.
5.) The ‘Show’ column is where you can Tick/Untick what bar styles you wish to view (e.g. Critical).
6.) Scrolling through the list, locate the bars you wish to change such as ‘Detail Normal’, and find the ‘Use Code’ column to the left. Select activity (which will draw codes from Activity Codes, whereas Resource will draw from Resource Codes), then select the code you want to ‘colour according to’ in the ‘Code column’. In this case, ‘Milestone’.
7.) Press the OK button once done to display the bar chart, colour-coded according to a user-defined code.
